Many teams call any rated wall a “firewall.” That mistake can delay permits and fail inspections. A Fire Barrier is not the same thing.
In this article, we explain the difference between a fire barrier and a firewall. You will learn what a Fire Barrier is designed to do, where each one is used, and what inspectors check to confirm compliance.
A firewall is a major separation element. It often splits buildings or large building portions. It can also create separate “buildings” under code rules. A Fire Barrier usually sits inside a building. It divides fire areas into smaller compartments. It helps limit fire and smoke spread in early stages.
Think about the goal first. If the goal is building separation, you usually think firewall. If the goal is compartmentation inside one building, you usually think Fire Barrier. Both slow fire spread. They do it in different ways and under different expectations.
A firewall is built for structural independence. It is meant to stand even if one side collapses. That is why it is often thicker and more robust. It may need special stability features. Some designs require pilasters or buttressing features.
A Fire Barrier relies on the building frame for support. Floors, columns, or roof framing can support it. If the supported structure fails, the Fire Barrier may fail too. That is not “bad design.” It is a different design intent. It changes how you specify supports and ratings.
Tip：Ask early if the wall must stand after collapse.
A firewall typically runs from foundation to roof. It must be continuous and complete. It also must extend through the roof in many cases. That continuity stops fire from bypassing the wall above ceilings.
A Fire Barrier often runs floor-to-floor or floor-to-roof. It must also be continuous through concealed spaces. Yet its continuity stops at its rated boundary. It is not meant to create two separate buildings. Ratings often differ too. Firewalls often target higher ratings than Fire Barrier walls.
Feature | Firewall | Fire Barrier |
Main goal | Building or major area separation | Compartmentation inside a building |
Support | Self-supporting by design | Supported by building structure |
Continuity | Foundation to roof, often through roof | Floor-to-floor or floor-to-roof |
Collapse expectation | Intended to remain standing | Not designed for collapse separation |
Typical rating range | Often higher | Often lower, still code-driven |
A Fire Barrier is not a substitute for a firewall when a firewall is required. It does not create structural separation by itself. It also does not “fix” a bad opening detail. A single unprotected penetration can defeat the rating. A missing joint system can do the same.
A Fire Barrier also does not replace firestopping. Firestopping is a system for gaps and penetrations. A Fire Barrier is the rated assembly itself. You need both to keep the rating valid. If teams treat them as the same, the wall fails in practice.
Code language often uses “fire-resistance-rated assembly.” That term covers walls, floors, and ceilings. A Fire Barrier is a type of rated assembly used for separation. The assembly includes studs, boards, insulation, and joints. It also includes tested details for edges and transitions.
Compartmentation is the strategy behind it. You divide a building into fire areas. You slow spread and protect exits. You also support staged evacuation plans. A Fire Barrier supports that plan when it stays continuous and protected.
Project teams often decide based on occupancy and hazard. They also decide based on building size and layout. High-risk areas often need separation. Exit paths also drive separations. Shaft enclosures can be another driver.
A firewall decision often comes from property line issues or building area limits. It can also come from desired separation for risk management. Owners may want separation for insurance reasons. Designers may want it for flexibility in future tenant plans. The key is alignment on goals before drawings lock.
Note：Write the goal in the spec, not only the rating.
A fire-resistance rating is a tested time measure. It does not mean “fireproof.” It means the assembly resists fire for a time under test rules. Ratings also rely on support conditions. A Fire Barrier needs supporting elements rated no less than the barrier rating. Otherwise, the wall can fail early.
Support and continuity are linked. If the ceiling system is not rated, the wall must go above it. If the wall stops at a non-rated ceiling, fire can bypass it. This is where many projects fail. Teams assume the wall “looks tall enough.” Inspectors look for tested continuity in concealed spaces.
Openings are the main weak points. Doors need fire door ratings. Frames need rated listings too. Glazing needs rated assemblies if used. Ducts and cable trays need tested penetration systems. Joints need rated joint systems at slab edges and head-of-wall.
Penetrations also change over time. Trades add cables late. They core drill new pipes. If the Fire Barrier is not managed, it becomes Swiss cheese. Good practice uses a penetration permit process. It also uses photo records before closure. This protects compliance and limits rework costs.
Tip：Control penetrations like change orders, not field favors.
Firewalls often use concrete or masonry systems. Some use specialized tested assemblies. They often require robust thickness and stability. They also often require specific connection details for movement.
A Fire Barrier can use many assemblies. Gypsum board on studs is common. Masonry can also serve. Some projects use concrete walls as Fire Barrier walls too. The key is the tested assembly and correct installation. You cannot mix parts from different systems and keep the rating. You must follow a listed design and its details.
The most common mistake is poor continuity. Walls stop at ceilings and skip the plenum. Another common issue is missing joint protection. Head-of-wall gaps get filled with non-rated foam. That fails inspection quickly.
Other failures come from unlisted penetrations. Teams use “whatever sealant is nearby.” They also miss backing materials in tested systems. Another issue is wrong door hardware or missing labels. Small changes can break listings. It is why submittals matter as much as drywall.
Risk area | Common field mistake | Result | Better control |
Head-of-wall | Unrated foam in gaps | Rating failure | Use listed joint system |
Penetrations | No tested firestop | Bypass path | Use listed penetration system |
Above ceilings | Wall stops at grid | Fire bypass | Extend wall to deck |
Doors | Wrong rating or frame | Noncompliance | Submittal and label checks |
A Fire Barrier is common for interior separation needs. It helps protect exit access corridors. It can separate hazards like storage rooms. It can enclose shafts and mechanical spaces. It can also divide occupancies in mixed-use buildings.
It also helps owners manage risk inside large floor plates. It can reduce smoke movement in early minutes. It can create defendable spaces during evacuation. It also supports phased construction in tenant work. A Fire Barrier gives flexibility when it is planned and documented early.
A firewall is used for major separations. It can separate building portions for code area limits. It can create separation between adjacent buildings. It can protect property lines and exposure risks. It can also support insurance-driven separation strategies.
Firewall design is not only “more rating.” It is also structural intent. It expects collapse resistance and stability. It often needs special detailing at roof lines. It may require parapets or roof opening rules. If your project needs these outcomes, a Fire Barrier is not enough.
Use a short checklist before you issue drawings. It prevents late redesign and field conflict.
● Start from the goal, not the label.
● Decide if you need building separation.
● If yes, review firewall intent and stability.
● If no, define Fire Barrier compartments clearly.
● Confirm required rating and boundary limits.
● Map the wall path through concealed spaces.
● List every opening type and needed ratings.
● List every trade penetration and firestop method.
● Require listed assemblies in submittals.
● Require photo records before close-in.Note：A clear checklist saves weeks during inspections.
Inspectors focus on continuity and listings. They check if the Fire Barrier reaches the correct boundary. They look above ceilings and inside shafts. They also check if firestopping matches a listed system. They check door labels and frame ratings. They often ask for submittals on joint systems.
At final inspection, they also check completeness. They look for new penetrations made late. They look for missing sealant or damaged board. They also look for unprotected openings at cable paths. If you plan inspections during rough-in, you reduce surprise failures later.
Buildings change during construction and after occupancy. Tenants add data lines. They add new ducts. They add new doors. Each change can cut a hole in the Fire Barrier. Without control, ratings degrade over time.
A simple process helps. Keep an as-built barrier map per floor. Tag barriers on drawings and in the field. Require permits for new penetrations. Require listed firestop systems per penetration type. Keep a photo log before ceilings close. This makes later audits far easier and cheaper.
Tip：Treat Fire Barrier changes as life-safety changes, not finishes.
Renovations are the top trigger for barrier damage. MEP work is the next trigger. Even small tasks can break rated joints. A new cable pull can tear firestop seals. A new diffuser can cut a rated ceiling. A new wall opening can void a listing.
Plan periodic reviews in high-change areas. Focus on IT rooms, shafts, and tenant corridors. Train maintenance teams on what not to disturb. Keep spare listed materials for common fixes. Document every repair and the system used. Good documentation supports insurance reviews and future permits.
Trigger event | Typical damage | Quick response | Record to keep |
Tenant fit-out | New penetrations | Require listed firestop | Photo and system ID |
New equipment | Larger openings | Review rated doors and frames | Submittals and labels |
Ceiling work | Gaps at head-of-wall | Reinstall listed joint system | Close-in inspection log |
Cable upgrades | Disturbed seals | Repack per listing | Work order and photos |
A firewall is built for major building separation and collapse resistance. A Fire Barrier is an interior rated assembly for compartmentation. The right choice depends on your project goal, wall continuity, and opening protection. Good documentation and change control keep the rating intact.

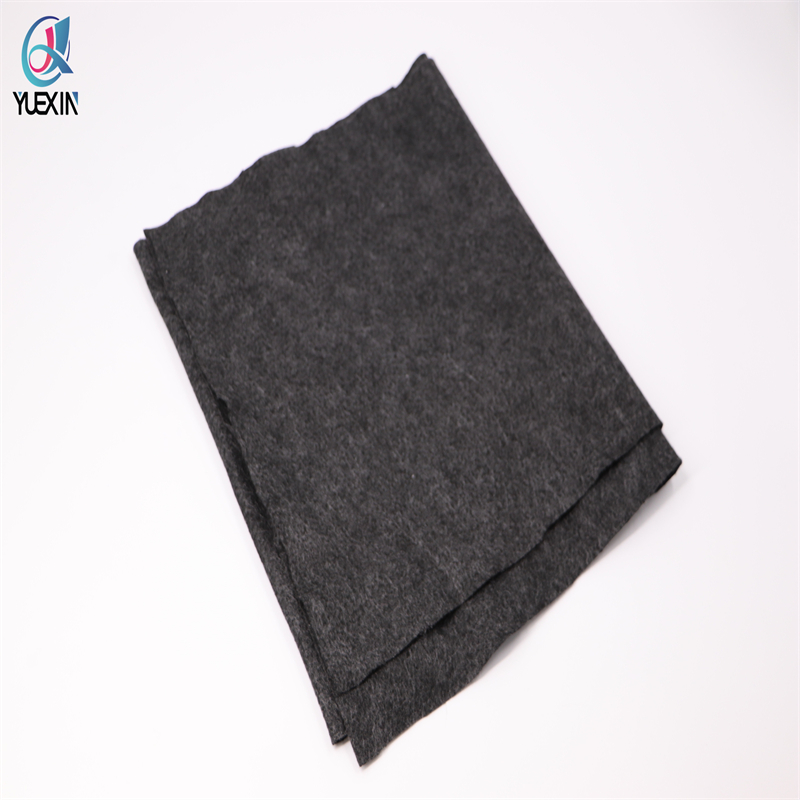

Dongguan Yuexin industrial Co,Ltd. supports safety-focused projects using acoustic and fire-retardant materials. Their polyester fiber panels and self-adhesive soundproof felt help teams improve comfort while meeting fire performance needs. Their OEM and custom options also help you match size, color, and installation needs on site.
A: A firewall separates buildings and is designed to stay standing after collapse. A Fire Barrier divides spaces inside one building for compartmentation.
A: A Fire Barrier is used for corridors, shafts, and hazard rooms. It supports fire area separation and life-safety planning.
A: Both need continuity and protected openings. A Fire Barrier often fails due to missing firestopping at penetrations and joints.
A: Start from the goal and code path. If you need building separation, use a firewall. If you need interior separation, specify a Fire Barrier.
A: Walls stopping at ceilings, unlisted firestop systems, and wrong door ratings. These issues break the Fire Barrier rating fast.
